Ultrasonic Cut & Fold Machine

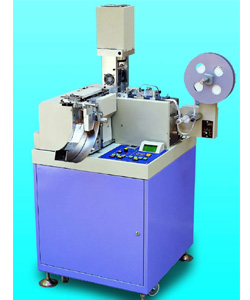

AMC Brand Ultrasonic Label Cut and Fold Machine, MODEL ALC-300A

Machine laid out: To Cut and Fold labels according to the following specifications.

Machine execution:
– Cutting width 10mm-50MM
– cutting length 20mm-80mm
– Fold in Centre
– maximum speed 1055 Dozens/Hour
– with automatic feeder
– weight : 185Kg
– size: (920mm X 820mm X 1470mm)

Nos. of cylinder: 3 sets total 18 pieces

Cylinder size: 5′ 7’ 9’ optional size to be purchase separately

Production capacity: 300,000pcs/8hrs with speed 40m/min (50mm label)

Electrical voltage: For top & reverse printing are install with 2 sets dryer unit.

Power supply: 220V Output: 3.1KW Maximum

Application: Satin ribbon, nylon taffeta, cotton tape etc.

Packing: Standard sea worthy packing from Shanghai, China seaport to Chittagong seaport.

Installation: Not included, client pay hotel and flights

Test of function: Mechanical check as well as test-run prior to shipment

Payment By: irrevocable L/C at sight

Delivery: 40 days upon receive your letter of credit

HS code: 84432900

Warranty: 1(one) limited warranty

Country of origin: Hong Kong
