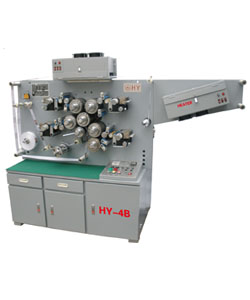

HY BRAND ROTARY PRINTING PRESS, MODEL HY 4B

Machine laid out: To print labels according to the following specifications.

Machine execution:

– with maximum 4 colors printing (front 3 and back 1)
– maximum width 100mm
– printing length 400mm (fixed length)
– maximum speed 60m/mim
– feeding & winding diameter 400mm
– weight 800kgs
– size 2100x820x1550mm

Production capacity: Approximately 2520,00pcs/8hrs with speed 60m/min (90mm label)

Electrical voltage: For top & reverse printing are install with 2 sets infrared dryer unit.

Power supply: 220V Output: 2.2KW Maximum

Application: Satin ribbon, nylon taffeta, cotton tape, elastic etc.

Packing: Standard sea worthy packing from Shanghai, China seaport to Chittagong seaport.

Installation: By Dhaka engineer

Training: By local engineer (Hotel and flights at buyer cost for oversea engineer)

Test of function: Mechanical inspection as well as test-run prior to shipment

Payment By: irrevocable L/C at sight

Delivery: 40 days upon receive your letter of credit

HS code: 84432900

Warranty: 1(one) limited warranty

Country of origin: China
