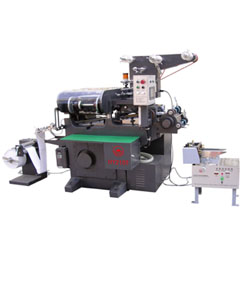

HY BRAND ADHESIVE LABEL PRINTING SERIES, MODEL HY 210T

Machine execution:
– Maximum 4 colors printing
– maximum width 220mm
– with die cut station
– with laminate function
– printing length 200x300mm (1-2 colors), 200x90mm (3 colors), 200x65mm (4 colors)
– maximum speed 12000 press/hour
– weight 2500kgs
– size 1980x1200x1650mm

Optional: Hot stamping station

Spocket: punching station

Production capacity: Approximately 80,000pcs/8hrs with speed 10000 press/hour (200mm label)

Electrical voltage: Power supply: 380V

Output: Main motor 3KW

Air suction motor: 0.375KW

Laminating motor and winder: 0.05KW

Hot stamping unit: 0.75KW

Servo motor: 0.75KW

Application: Adhesive paper, Satin ribbon, nylon taffeta, etc.

Packing: Standard sea worthy packing from Shanghai, China seaport.

Installation: Not included, client pay accommodation and flights

Test of function: Mechanical inspection as well as test-run prior to shipment

Payment By: irrevocable L/C at sight

Delivery: 40 days upon receive your letter of credit

HS code: 84432900

Warranty: 1(one) year limited warranty

Country of origin: China
