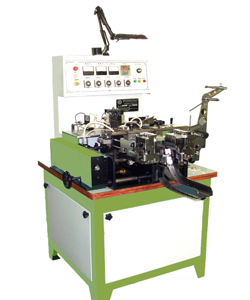

CUT AND FOLD MACHINE MODEL TF-388

Machine laid out: To cut and fold labels according to the following specifications.

END FOLD
– maximum width 10-65mm
– folding length 20mm-145mm

MITRE FOLD
– maximum width 10-25mm
– max length 55-110mm

CENTRE FOLD
– maximum width 10-65mm
– fold length 14-80mm

TAGFOLD
– maximum width 10-65mm
– fold length 5-60mm, 5-10mm

STRAIGTH CUT
– maximum width 10-65mm
– maximum length 25-160mm

Electrical voltage: Power supply: 220V 50/60Hz Input 2.5kw

Application: Satin ribbon, nylon taffeta, woven label, cotton ribbon etc.

Packing: Standard sea worthy packing.

Weight: 350kgs

Installation: Yes, free installation and training by our local engineer

Test of function: Mechanical check as well as test-run prior to shipment

Payment By: irrevocable L/C at sight

Delivery: 40 days upon receive your letter of credit

HS code: 84459000

Warranty: 1(one) year limited warranty

Country of origin: CHINA
